Description

Features

• Energy Class A++
• Design Fabrizio Crisà
• Analog touch & feel
• Innovative multi-purpose grease filter
• Odour and moisture filter
• Maintenance alarm
• Fast boiling function
• Easy cleaning and maintenance
• Autocapture feature
• Comfort silence technology
• Aluminium grease filter included

Functions

• DUCT-OUT(A)
• Controls- 9S+B Electronic Rotative
• Booster airflow – 620 m3/h
• Suction speed – 5.1 m/s
• Min-max noise level – 34-67 db(A)
• Absorption – 175 W
• FILTERING (F)
• Controls- 9S+B Slider touch control
• Booster airflow – 600 m3/h
• Suction speed – 5.1 m/s
• Min-max noise level – 38-71 db(A)
• Absorption – 175 W

Cooking Functions

• Controls: 9P+B Electronic Rotative
• 4 Cooking zones 221×184 mm – 2,1/3,7 KW
• Cooking absorption: 7,2 kW
• Power limitation: 4,5 kW
• Voltage: 220 – 240 V
• 2 Bridge zones

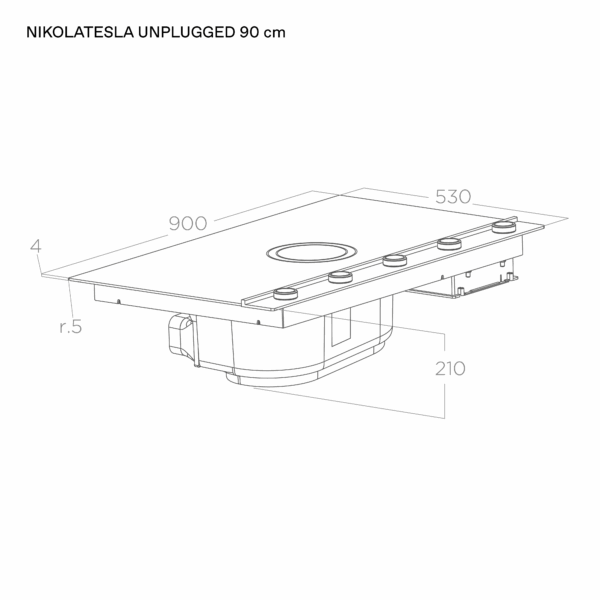

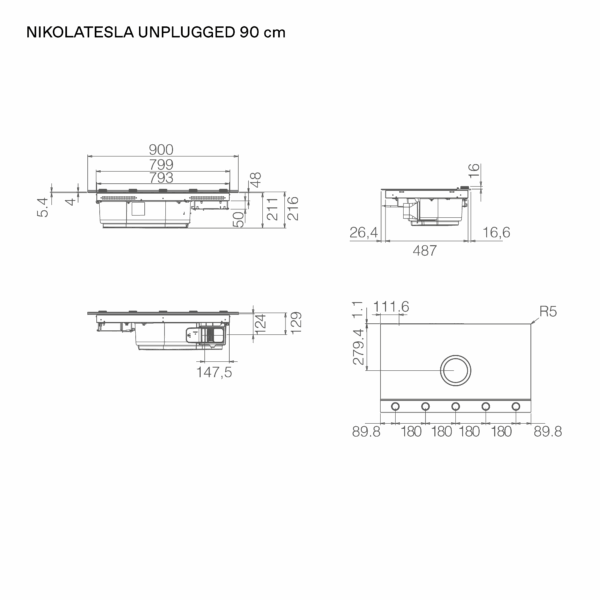

Dimensions

• W: 900 mm
• L: 530 mm
• D: 210 mm

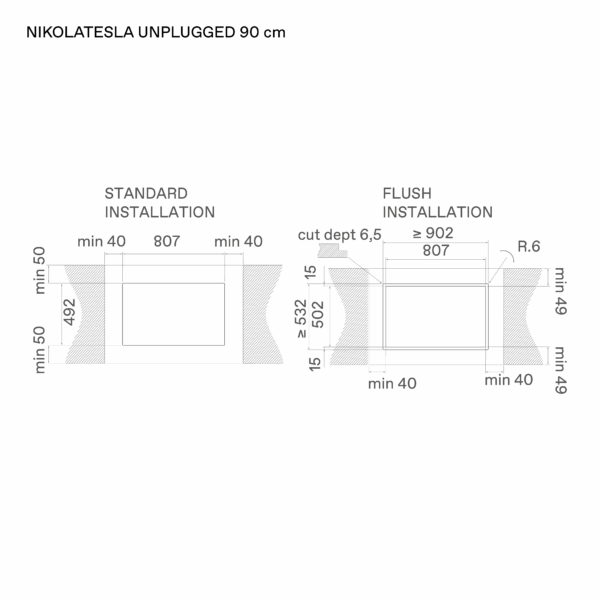

Cut Out Dimensions

• W: 807 mm
• L: 492 mm
