Description

Features

• Energy Class A++
• Design Fabrizio Crisà
• Dual zone
• Multiflexi space
• In compliance with all safety standards
• Flat grids and closed cross design to guarantee stability
• Drainage valve to allow the discharge of spilled liquids
• Easy cleaning and maintenance
• Grease aluminium filter included

Functions

• DUCT-OUT(A)
• Controls – 3S+2B Rotative
• Booster airflow – 590 m3/h
• Suction speed – 5.1 m/s
• Min-max noise level – 40-57 db(A)
• Absorption – 250 W
• FILTERING (F)
• Controls- 3S+2B Rotative
• Booster airflow – 550 m3/h
• Suction speed – 5.1 m/s
• Min-max noise level – 41-60 db(A)
• Absorption – 250 W

Cooking Functions

• Controls: 9P+B Slider touch control
• Burner Types:
• Front left: Semi rapid (1,75 kW)
• Rear leftt:Dual special (3,5 kW)
• Rear right: Rapid (3 kW)
• Right front: Semi rapid (1,75 kW)
• Voltage: 220 – 240 V

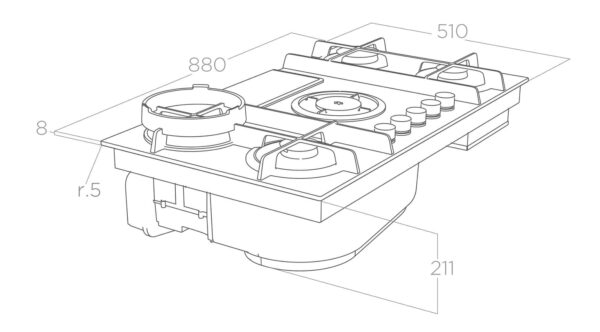

 Dimensions

• W: 880 mm
• L: 510 mm
• D: 210 mm

Cut Out Dimensions

• W: 840 mm
• L: 487 mm
