Description

Features

• Energy Class A
• Design Fabrizio Crisà
• Induction hob with integrated hidden extraction
• Comfort silence technology
• Stop & Go feature
• Autocapture feature
• Drainage valve to allow the discharge of spilled liquids
• Easy cleaning and maintenance
• Grease aluminium filter included

Functions

• DUCT-OUT(A)
• Controls- 4S+B Slider touch control
• Booster airflow – 620 m3/h
• Suction speed – 5,1 m/s
• Min-max noise level – 43-61 db(A)
• Absorption – 160 W
• FILTERING (F)
• Controls- 4S+B Slider touch control
• Booster airflow – 520 m3/h
• Suction speed – 5,1 m/s
• Min-max noise level – 44-68 db(A)
• Absorption – 160 W

Cooking Functions

• Controls: 9P+B Slider touch control
• 1 Cooking zone 210×191 mm – 1,6/1,85 kW
• 1 Cooking zone 210×191 mm – 2,1/3 kW
• 1 Cooking zone Ø200 mm – 2,3/3 kW
• 1 Cooking zone Ø160 mm – 1,2/1,4 kW
• Cooking absorption: 7,2 kW
• Power limitation: 3,1-4,5 kW
• Voltage: 220 – 240 V
• 1 Left Bridge zone

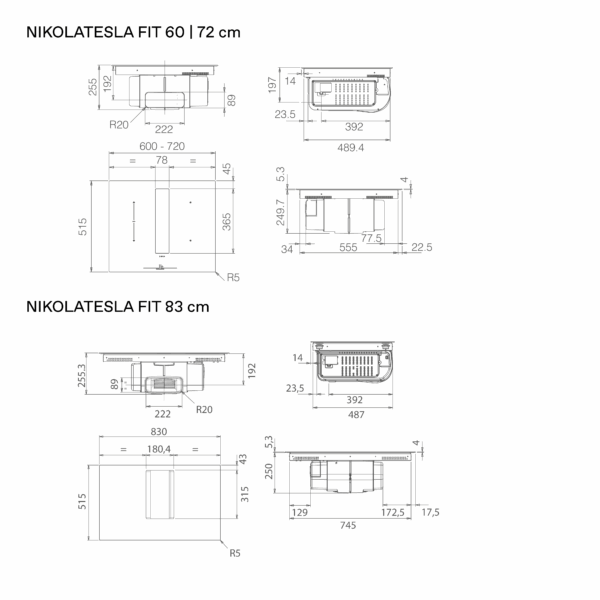

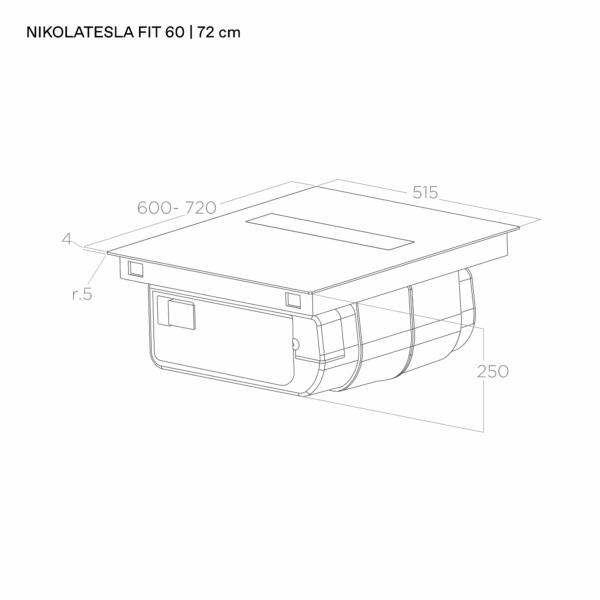

Dimensions

• Available in 2 sizes:
• W 600 mm x L 515 mm x D 250 mm
• W 720 mm x L 515 mm x D 250 mm

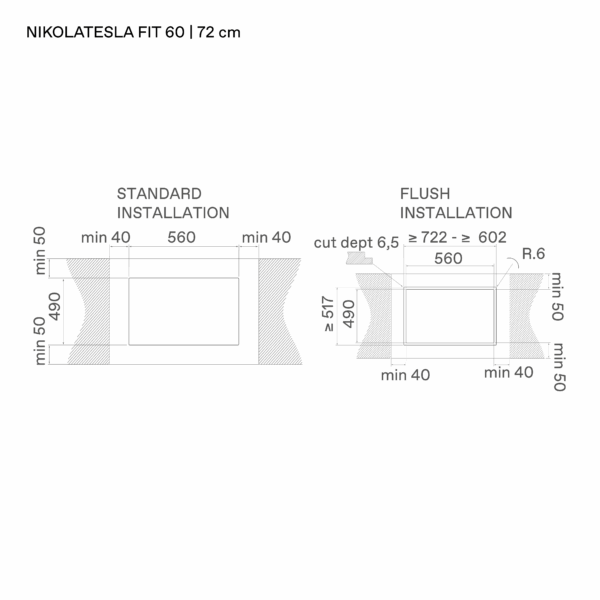

Cut Out Dimensions

• W: 560 mm
• L: 490 mm
